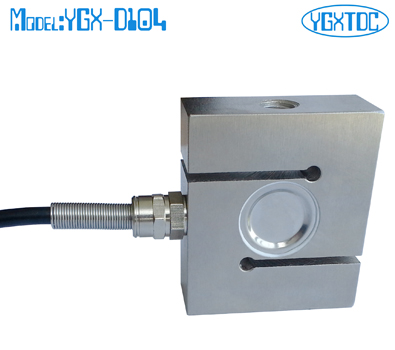

S-type load cell 200KG 500KG 1T 2T 3T 5T
Model:YGX-D104
Features & Applications:
Using S type beam structure, pull, pressure can be used.
High measuring accuracy, good stability, good output symmetry.
Force measuring system is widely used in belt scale, hopper scale, electro-mechanic scale, universal material testing machine, hook scales and various engineering devices.
Capacity: 200~10000KG
Dimensions(mm):
|
Size(mm)
Capacity
|
2-M
|
H
|
L2
|
L1
|
|
200kg-500kg
|
M12×1.75
|
70
|
25
|
60
|
|
700kg-1t
|
M16×2
|
70
|
25
|
60
|
|
1.5-2t
|
M16×2
|
70
|
25
|
64
|
|
3t-5t
|
M18×1.5
|
94
|
35
|
86
|
|
6-10t
|
M30×2
|
137
|
60
|
110
|
Specification:
|
Rated output
|
2.0±0.05mV/V
|
|
Non-linearity
|
≤±0.03%F·S
|
|
Hysteresis
|
≤±0.03%F·S
|
|
Repeatability
|
≤±0.03%F·S
|
|
Creep(30min)
|
≤±0.03%F·S
|
|
Zero balance
|
≤±1%F·S
|
|
Temperature effect on zero
|
≤±0.03%F·S/10℃ |
|
Temperature effect on output
|
≤±0.03%F·S/10℃ |
|
Operation temperature range
|
-20℃～+80℃
|
|
Input impedance
|
350±20Ω
|
|
Output impedance
|
350±5Ω
|
|
Safe overload
|
≤150%F·S
|
|
Insulation
|
≥5000MΩ(50VDC)
|
|
Recommended excitation
|
10V-15V
|
|
Protection Class
|
IP67
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
|
|
 |
|
|
