S-type load cell 5kg 10kg 20kg 50kg 100kg 200kg
Model: YGX-D102
Features & Applications:
Using S type beam structure, pull, pressure can be used. High accuracy,good stability, good output symmetry.
Force measuring system is widely used in belt scale, hopper scale, electro-mechanic scale, universal material testing machine, hook scales and various engineering devices.
Capacity：1~500KG

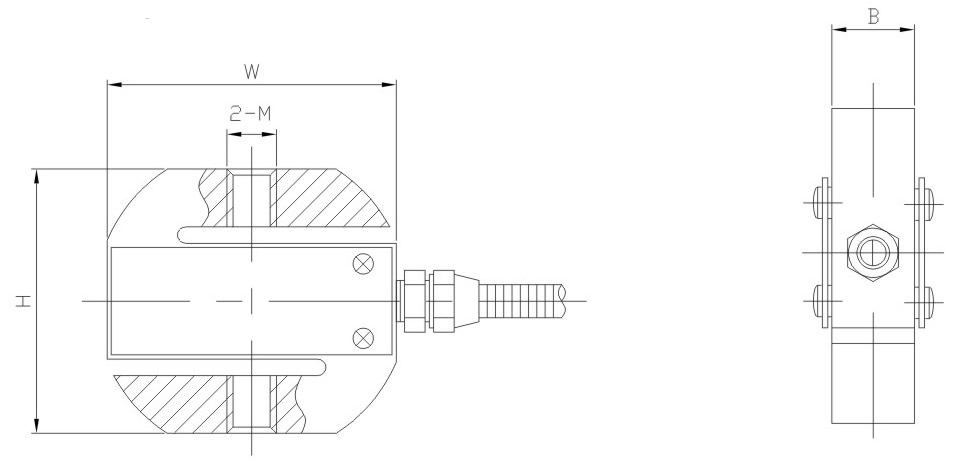

Dimensions(mm):
|
Size(mm)
Capacity
|
M
|
W
|
H
|
B
|
| 0-1kg |
M6×1.25
|
60 |
58 |
12 |
|
2-30kg
|
M8×1.25
|
60
|
58
|
12
|
|
50-200kg
|
M12×1.75
|
70
|
64
|
20
|
| 300-500kg |
M12×1.75
|
70 |
64 |
20 |
| 1T |
M16x2 |
64 |
70 |
25 |
| 2-5T |
M20x2 |
84 |
92 |
32 |
Specification:
| Rated output |
2.0±0.05mV/V |
| Non-linearity |
≤±0.03%F·S |
| Hysteresis |
≤±0.03%F·S |
| Repeatability |
≤±0.03%F·S |
| Creep(30min) |
≤±0.03%F·S |
| Zero balance |
≤±1%F·S |
| Temperature effect on zero |
≤±0.03%F·S/10℃ |
| Temperature effect on output |
≤±0.03%F·S/10℃ |
| Operation temperature range |
-20℃～+80℃ |
| Input impedance |
350±20Ω |
| Output impedance |
350±5Ω |
| Safe overload |
≤150%F·S |
| Insulation |
≥5000MΩ(50VDC) |
| Recommended excitation |
10V-15V |
| Protection Class |
IP64 |
| Wiring |
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
|
|
 |
|
|
